Rock Solid Transmission Jack- RS12AH93B
$1,095.00

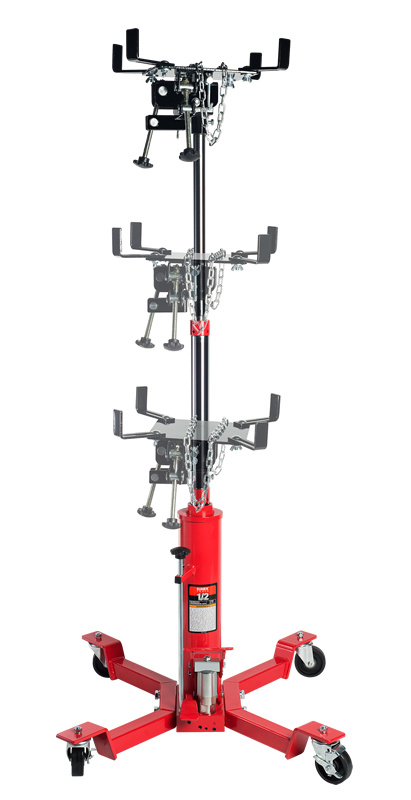

1000 lb. (1/2 Ton) Telescopic Transmission Jack
1000 lb. (1/2 Ton) Telescopic Transmission Jack
- Removal, Installation and transport of transmissions and transfer cases on vehicles that are supported by lifts.

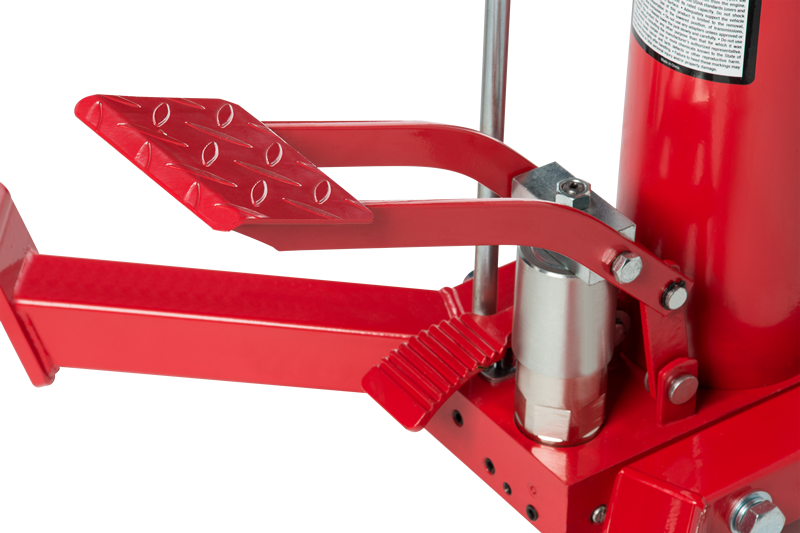

- Foot activated pump pedal allows hands free raising of the transmission and foot activated release for hands free lowering
- 35.5" low height allows for easy transfer of transmission to work table

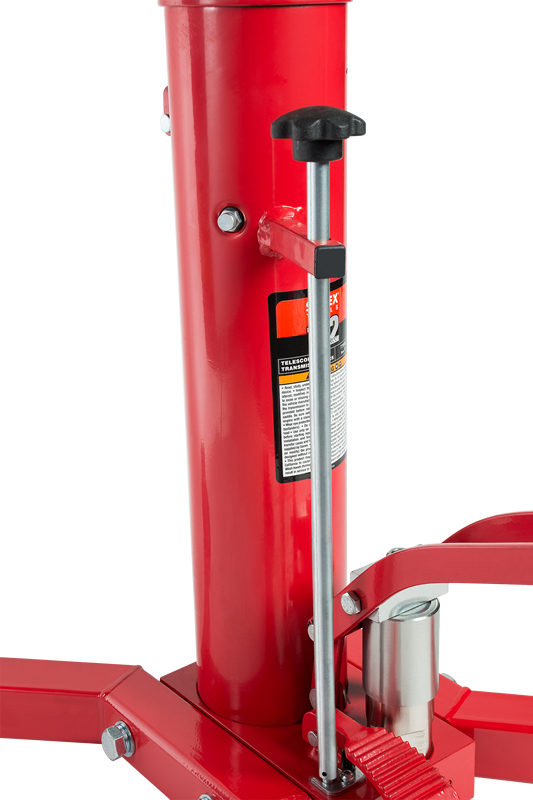

- Foot pedal release lowers the load at the normal rate speed while additional release knob provides slow, controlled lowering of the load for hands-free applications
- Universal saddle with angle brackets can be adjusted to any transmission pan configuration
- Chain tie down safely secures transmission to saddle
- Overload valve prevents jack from being used beyond capacity
- Wide base legs with swivel caster, polyurethane tread wheels provide stability and easy maneuverability even under load.
- Includes 2 locking casters
| Base | 21.25 x 35 |
| Capacity (lbs.) | 1000 |
| High Height (in.) | 75.5 |
| Low Height (in.) | 35.5 |
| Saddle Tilt Fore and Aft | 53 x 30 |
| Saddle Tilt Side to Side |
+10, -30 |
| Shipping Weight (lbs.) | 167 |
