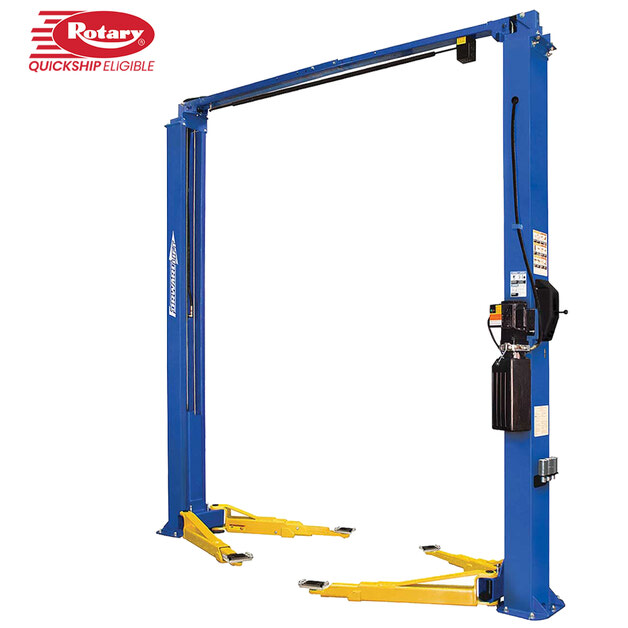

Forward F10 Two-Post Lift
Frame engaging rubber padded truck adapters with multiple adapter extensions to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″.
Additional Features:
- 10,000 lbs. capacity for raising most passenger cars, trucks and vans.
- Third party tested by ETL and approved by ALI.
- 3-stage front and 2-stage rear arms
- Adapter storage bracket kit
- Hydraulic cylinders in each column:
- Direct pull lifting technology
- Top mounted
- Full stroke
- Cylinder rod concealed inside carriage
| Specifications | F10N500MBL * |
| Capacity | 10,000lbs |
| Max. Rise w/5″ extension | 76 1/4″ |
| Overall Height | 11′ 9″ |
| Optional Extended Height | 13′ 9″ with T100295 kit |
| Overall Width | 10′ 9″ or optional 11′ 5″ |
| Drive through clearance | 99″ or optional 105″ |
| Overhead switch height | 137 1/8″ |
| Front Arm Reach (Min/Max) | 24 1/2″ / 44 3/8″ |
| Rear Arm Reach (Min/Max) | 36″ / 58″ |
| Min/Max Adapter Height | 3 3/4″ without extension 8 3/4″ w/5″ extension |
| Width Inside Column | 109″ or optional 115″ |
| Voltage/Amps | 208-230V, 17 amps |
| Motor/Phase | 1PH / 2HP / 60Hz |
| Ceiling height required | 12′ |
